Overview

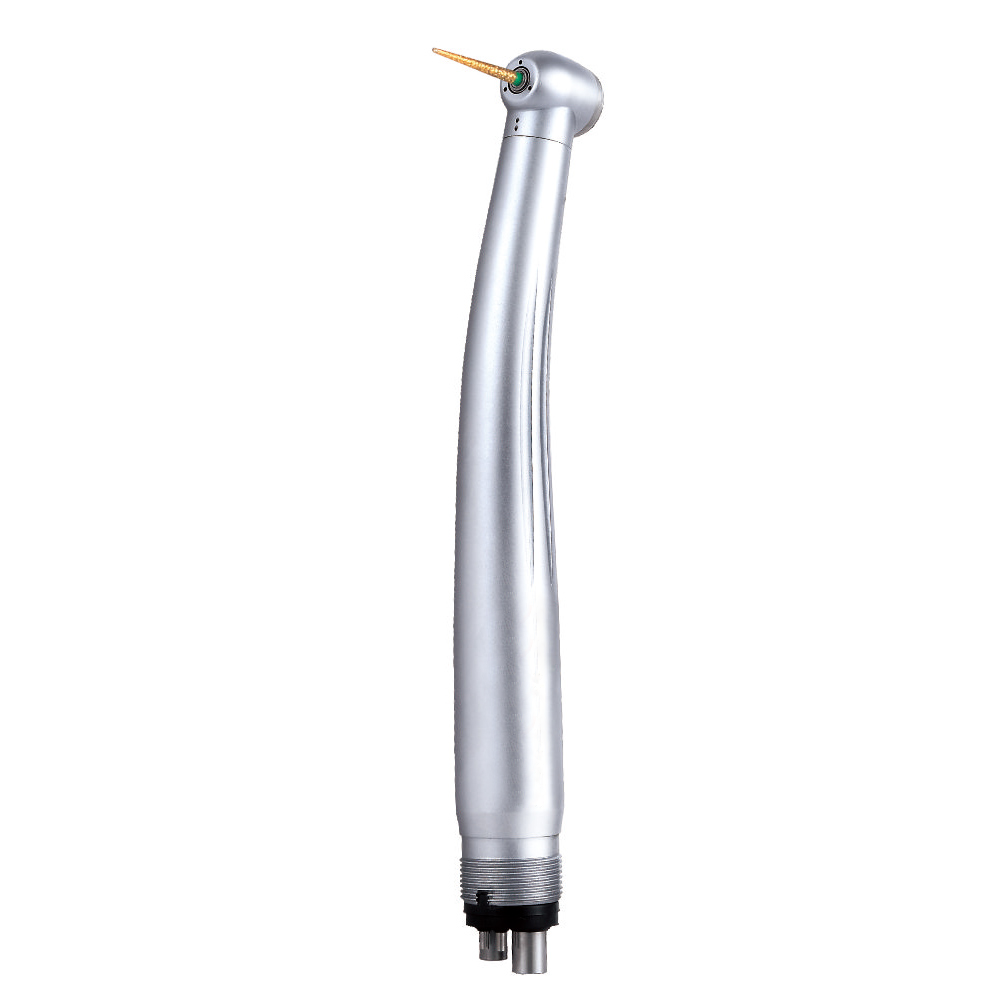

High-Speed Dental Hand piece KDH-A200 is a contra-angled fiber optic dental drill instrument. Incorporated high precision spin-motor allows stable rotation ensuring high-end performance. LED light illumination and triple-point water spray improves scope of visibility.

Specifications :

Rotation Speed	Up to 3,60,000 rpm
Torque Speed	3,00,000 rpm
Bur Insertion	Standard Push button
Gear Ratio	1:1
Drive	Air driven
Type of Bearing	Ceramic
Air Pressure	0.2 MPa ~ 0.24 MPa
LED Source Life	1000 hours
Tubing Connection	6 holes
Construction	Stainless steel exterior
Applicable Bur Size	Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm
Cartridge	Collect-type
Noise	< 68 dB
Weight	Approx. 180 g

Features :

• - Optical LED illumination
• - Anti-retraction valve mechanism
• - Enhanced grip control
• - Quick coupling

Applications :

Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
